LM5105SD/NOPB

In Stock: 2,216
LM5105SD/NOPB - Texas Instruments - PMIC - Gate Drivers
REF: LM5105SD/NOPB Texas Instruments
LM5105SD/NOPB

Texas Instruments

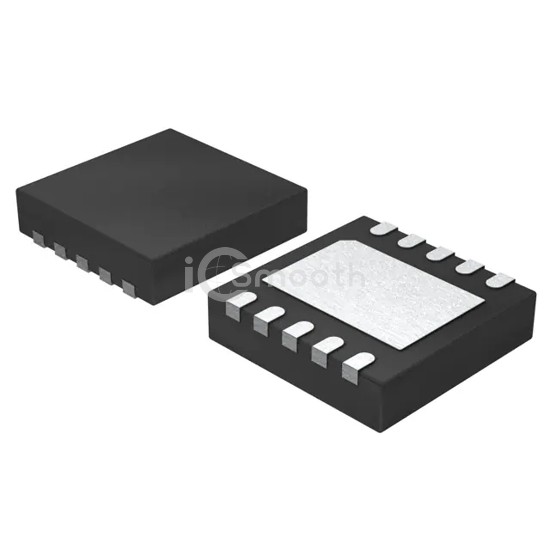

IC GATE DRVR HALF-BRIDGE 10WSON

LM5105SD/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 10-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,216

Tiered Pricing USD
1+ $3.6600 —
10+ $2.7580 -25%
25+ $2.5324 -31%
100+ $2.2847 -38%
250+ $2.1665 -41%
500+ $2.0952 -43% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1.8A, 1.8A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)15ns, 15ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
