LM5105SD

In Stock: 9,406

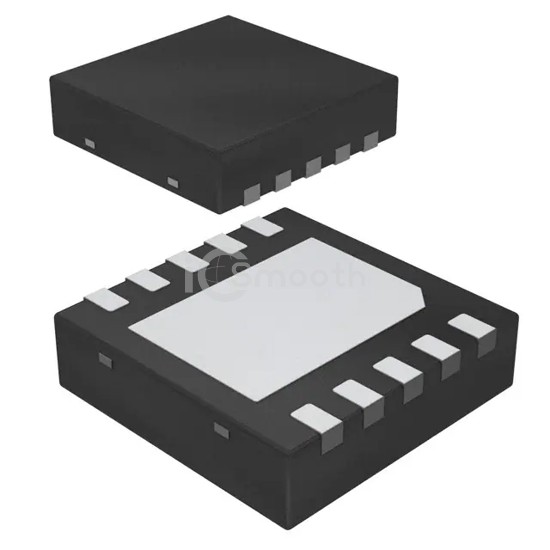

LM5105SD - Texas Instruments - PMIC - Gate Drivers
REF: LM5105SD Texas Instruments
LM5105SD

Texas Instruments

IC GATE DRVR HALF-BRIDGE 10WSON

LM5105SD is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 8V ~ 14V, package / case 10-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 9,406

Tiered Pricing USD
1,000+ $1.3843 —
2,000+ $1.3492 -3%
3,000+ $1.3316 -4%
5,000+ $1.3121 -5%
7,000+ $1.3007 -6% BEST

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply8V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1.8A, 1.8A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)15ns, 15ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
