LM5104SD

In Stock: 4,725
LM5104SD - Texas Instruments - PMIC - Gate Drivers
REF: LM5104SD Texas Instruments
LM5104SD

Texas Instruments

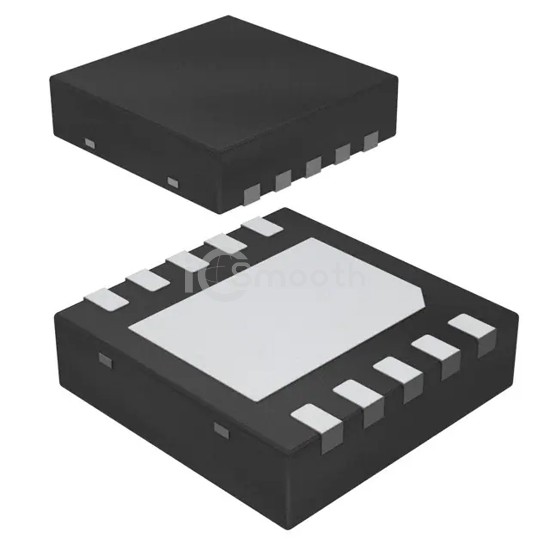

IC GATE DRVR HALF-BRIDGE 10WSON

LM5104SD is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 10-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,725

Tiered Pricing USD
1,000+ $1.6823 —
2,000+ $1.6410 -2%
3,000+ $1.6204 -4%
5,000+ $1.5975 -5% BEST

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH0.8V, 2.2V
Current - Peak Output (Source, Sink)1.6A, 1.6A
Input TypeInverting, Non-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)600ns, 600ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
