LM5101CSD

In Stock: 2,072

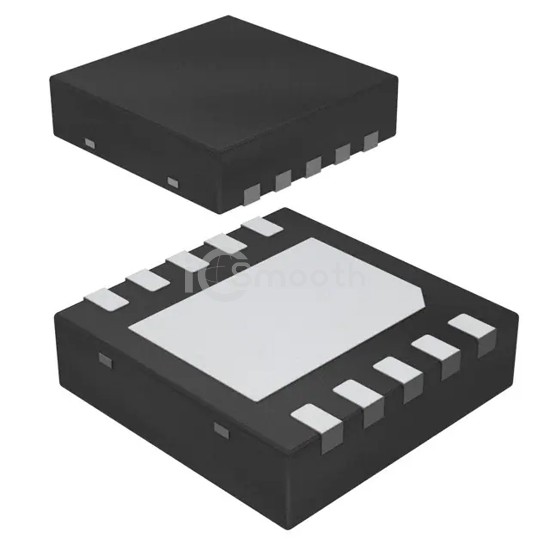

LM5101CSD - Texas Instruments - PMIC - Gate Drivers
REF: LM5101CSD Texas Instruments
LM5101CSD

Texas Instruments

IC GATE DRVR HALF-BRIDGE 10WSON

LM5101CSD is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 10-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,072

Tiered Pricing USD
1,000+ $1.4714 —
2,000+ $1.4344 -3%
3,000+ $1.4159 -4%
5,000+ $1.3954 -5%
7,000+ $1.3834 -6% BEST

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH2.3V, -
Current - Peak Output (Source, Sink)1A, 1A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)990ns, 715ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
