LM5101ASD-1/NOPB

In Stock: 3,231

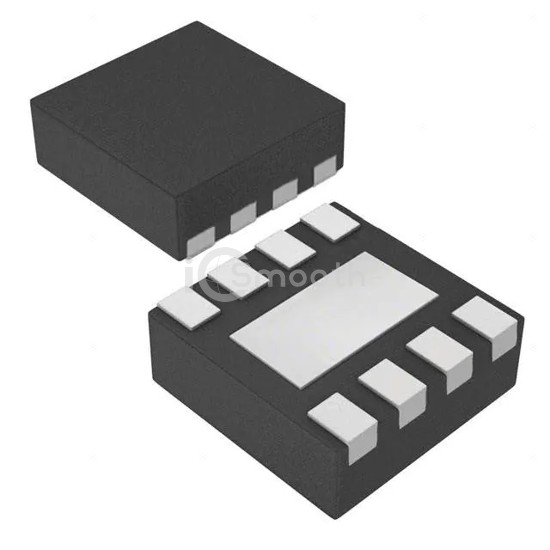

LM5101ASD-1/NOPB - Texas Instruments - PMIC - Gate Drivers
REF: LM5101ASD-1/NOPB Texas Instruments
LM5101ASD-1/NOPB

Texas Instruments

IC GATE DRVR HALF-BRIDGE 8WSON

LM5101ASD-1/NOPB is a PMIC - Gate Drivers manufactured by Texas Instruments. IC GATE DRVR HALF-BRIDGE 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 8-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,231

Tiered Pricing USD
1+ $4.4100 —
10+ $3.3480 -24%
25+ $3.0820 -30%
100+ $2.7891 -37%
250+ $2.6494 -40%
500+ $2.5652 -42% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH2.3V, -
Current - Peak Output (Source, Sink)3A, 3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)430ns, 260ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-WDFN Exposed Pad
Supplier Device Package8-WSON (4x4)
