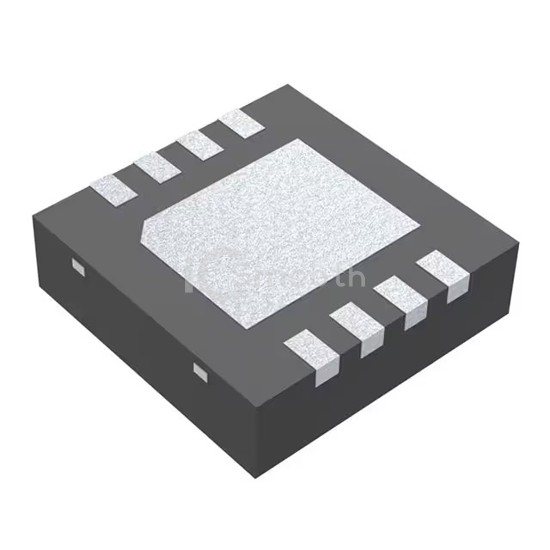

Name: LM5085SDX/NOPB
Brand: Texas Instruments
SKU: LM5085SDX/NOPB
Price: 2.50 USD
Availability: InStock

REF: LM5085SDX/NOPB Texas Instruments

LM5085SDX/NOPB

Texas Instruments

IC REG CTRLR BUCK 8WSON

LM5085SDX/NOPB is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 75V, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,515

Tiered Pricing USD

1+ $2.5000 —

10+ $1.8620 -26%

25+ $1.7016 -32%

100+ $1.5251 -39%

250+ $1.4409 -42%

500+ $1.3901 -44%

1,000+ $1.3483 -46% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	4.5V ~ 75V
Frequency - Switching	Up to 1MHz

Duty Cycle (Max)	100%
Synchronous Rectifier	No
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, On Time Control
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Supplier Device Package	8-WSON (3x3)
