Name: LM5041ASDX
Brand: Texas Instruments
SKU: LM5041ASDX
Availability: InStock

REF: LM5041ASDX Texas Instruments

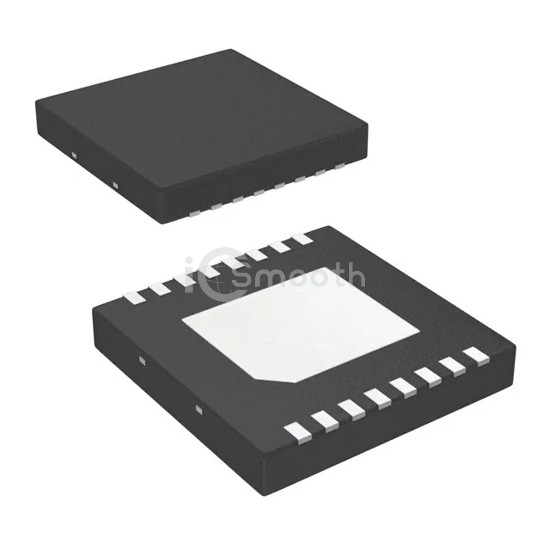

LM5041ASDX

IC REG CTRLR MULT TOP 16WSON

LM5041ASDX is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR MULT TOP 16WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 15V ~ 90V, package / case 16-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,925

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive
Topology	Half-Bridge, Push-Pull
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	15V ~ 90V
Frequency - Switching	200kHz, 600kHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Dead Time Control, Frequency Control, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Supplier Device Package	16-WSON (5x5)
