Name: LM5036RJBT
Brand: Texas Instruments
SKU: LM5036RJBT
Price: 6.37 USD
Availability: InStock

REF: LM5036RJBT Texas Instruments

LM5036RJBT

HALF-BRIDGE PWM CONTROLLER WITH

LM5036RJBT is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. HALF-BRIDGE PWM CONTROLLER WITH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 7.5V ~ 8.1V, package / case 28-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,053

Tiered Pricing USD

1+ $6.3700 —

10+ $4.8910 -23%

25+ $4.5224 -29%

100+ $4.1170 -35% BEST

Specifications

18 parameters

Product Status	Active
Output Type	PWM
Function	Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Half-Bridge
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	7.5V ~ 8.1V
Frequency - Switching	2MHz

Duty Cycle (Max)	50%
Synchronous Rectifier	Yes
Clock Sync	Yes
Serial Interfaces	-
Control Features	Current Limit, Frequency Control, Ramp
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount

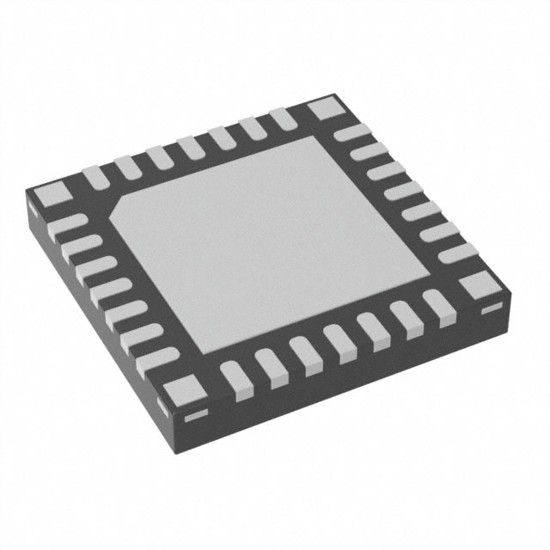

Package / Case	28-WFQFN Exposed Pad
Supplier Device Package	28-WQFN (5x5)
