Name: LM5026SD
Brand: Texas Instruments
SKU: LM5026SD
Price: 1.68 USD
Availability: InStock

REF: LM5026SD Texas Instruments

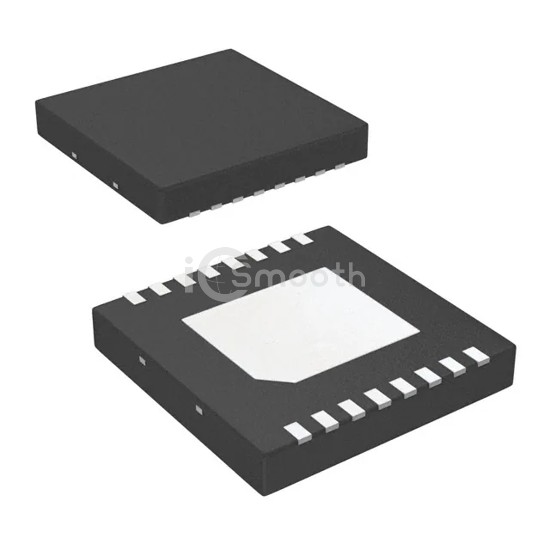

LM5026SD

IC REG CTRLR FWRD CONV 16WSON

LM5026SD is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR FWRD CONV 16WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8V ~ 15V, package / case 16-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,428

Tiered Pricing USD

1,000+ $1.6823 —

2,000+ $1.6410 -2%

3,000+ $1.6204 -4%

5,000+ $1.5975 -5% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive, Isolation Capable
Topology	Forward Converter
Number of Outputs	2
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 15V
Frequency - Switching	200kHz ~ 590kHz

Duty Cycle (Max)	70%, 80%
Synchronous Rectifier	No
Clock Sync	Yes
Serial Interfaces	-
Control Features	Dead Time Control, Frequency Control, Reset, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Supplier Device Package	16-WSON (5x5)
