Name: LM5000SD-6
Brand: Texas Instruments
SKU: LM5000SD-6
Price: 2.72 USD
Availability: InStock

REF: LM5000SD-6 Texas Instruments

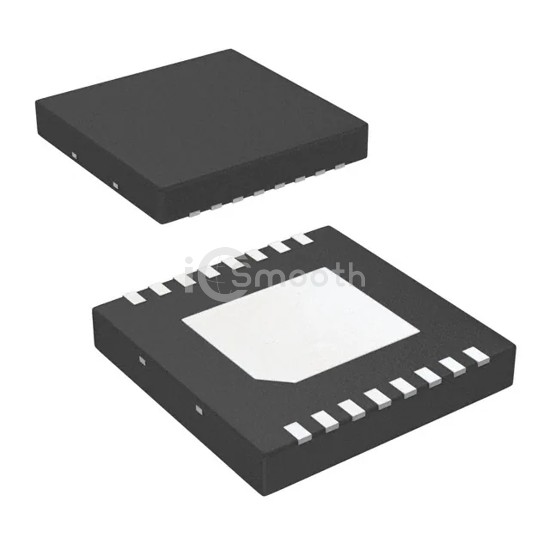

LM5000SD-6

IC REG MULTI CONFG ADJ 16WSON

LM5000SD-6 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG MULTI CONFG ADJ 16WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFDFN Exposed Pad, current - output 1.35A (Switch).

Datasheet Request a Quote

In Stock: 5,079

Tiered Pricing USD

1,000+ $2.7168 —

2,000+ $2.6556 -2%

3,000+ $2.6250 -3% BEST

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Flyback, Forward Converter
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.1V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	3.1V

Voltage - Output (Max)	80V (Switch)
Current - Output	1.35A (Switch)
Frequency - Switching	600kHz, 1.3MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Supplier Device Package	16-WSON (5x5)
