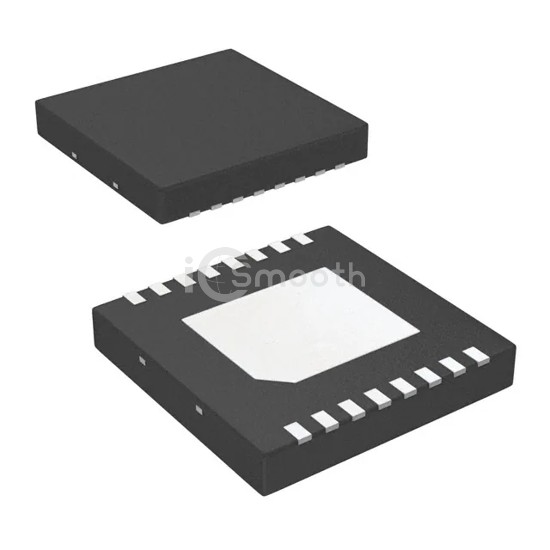

Name: LM5000SD-3/NOPB
Brand: Texas Instruments
SKU: LM5000SD-3/NOPB
Price: 6.30 USD
Availability: InStock

REF: LM5000SD-3/NOPB Texas Instruments

LM5000SD-3/NOPB

Texas Instruments

IC REG MULTI CONFG ADJ 16WSON

LM5000SD-3/NOPB is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG MULTI CONFG ADJ 16WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 16-WFDFN Exposed Pad, current - output 1.35A (Switch).

Datasheet Request a Quote

In Stock: 50

Tiered Pricing USD

1+ $6.3000 —

10+ $4.8350 -23%

25+ $4.4696 -29%

100+ $4.0683 -35%

250+ $3.8770 -38%

500+ $3.7617 -40% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Flyback, Forward Converter
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	3.1V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	3.1V

Voltage - Output (Max)	80V (Switch)
Current - Output	1.35A (Switch)
Frequency - Switching	300kHz, 700kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad
Supplier Device Package	16-WSON (5x5)
