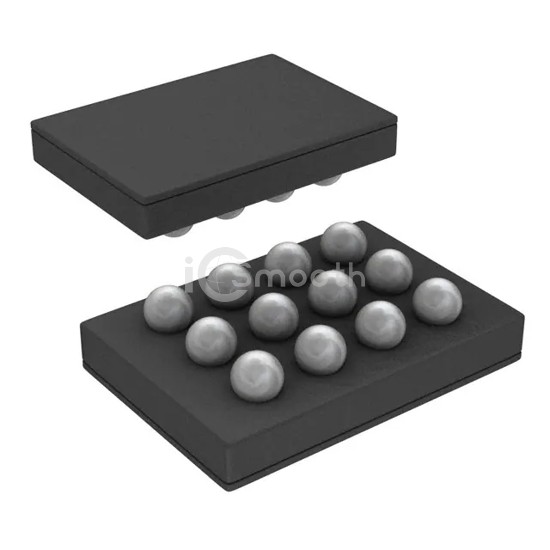

Name: LM3686TLE-AAEF/NOPB
Brand: Texas Instruments
SKU: LM3686TLE-AAEF/NOPB
Price: 0.61 USD
Availability: InStock

REF: LM3686TLE-AAEF/NOPB Texas Instruments

LM3686TLE-AAEF/NOPB

Texas Instruments

IC REG TRPL BCK/LNR SYNC 12DSBGA

LM3686TLE-AAEF/NOPB is a PMIC - Voltage Regulators - Linear + Switching manufactured by Texas Instruments. IC REG TRPL BCK/LNR SYNC 12DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.7V ~ 5.5V, package / case 12-WFBGA.

Datasheet Request a Quote

In Stock: 3,899

Tiered Pricing USD

750+ $0.6140 —

1,250+ $0.5994 -2%

1,750+ $0.5909 -4%

2,500+ $0.5827 -5%

6,250+ $0.5651 -8%

12,500+ $0.5544 -10% BEST

Specifications

15 parameters

Product Status	Obsolete
Topology	Step-Down (Buck) Synchronous (1), Linear (LDO) (2)
Number of Outputs	3
Frequency - Switching	3MHz
Voltage/Current - Output 1	1.8V, 600mA
Voltage/Current - Output 2	1.2V, 350mA
Voltage/Current - Output 3	3V, 300mA
w/LED Driver	No

w/Supervisor	No
w/Sequencer	No
Voltage - Supply	2.7V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	12-WFBGA
Supplier Device Package	12-DSBGA
