Name: LM3503ITLX-25/NOPB
Brand: Texas Instruments
SKU: LM3503ITLX-25/NOPB
Price: 1.30 USD
Availability: InStock

REF: LM3503ITLX-25/NOPB Texas Instruments

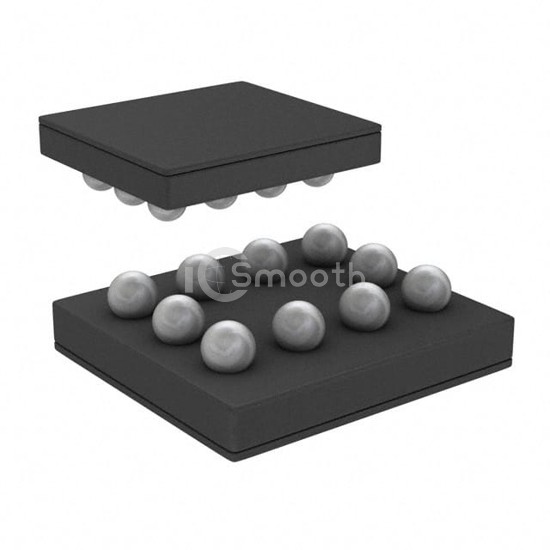

LM3503ITLX-25/NOPB

Texas Instruments

IC LED DRVR RGLTR PWM 10TUSMD

LM3503ITLX-25/NOPB is a PMIC - LED Drivers manufactured by Texas Instruments. IC LED DRVR RGLTR PWM 10TUSMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 25V, package / case 10-WFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 4,438

Tiered Pricing USD

3,000+ $1.2954 —

6,000+ $1.2701 -2% BEST

Specifications

16 parameters

Product Status	Obsolete
Type	DC DC Regulator
Topology	Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	2
Voltage - Supply (Min)	2.5V
Voltage - Supply (Max)	5.5V
Voltage - Output	25V

Current - Output / Channel	600mA (Switch)
Frequency	1MHz
Dimming	Analog, PWM
Applications	Backlight
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-WFBGA, DSBGA
Supplier Device Package	10-TµSMD (1.9x2.07)
