Name: LM339DBR
Brand: Texas Instruments
SKU: LM339DBR
Price: 0.38 USD
Availability: InStock

REF: LM339DBR Texas Instruments

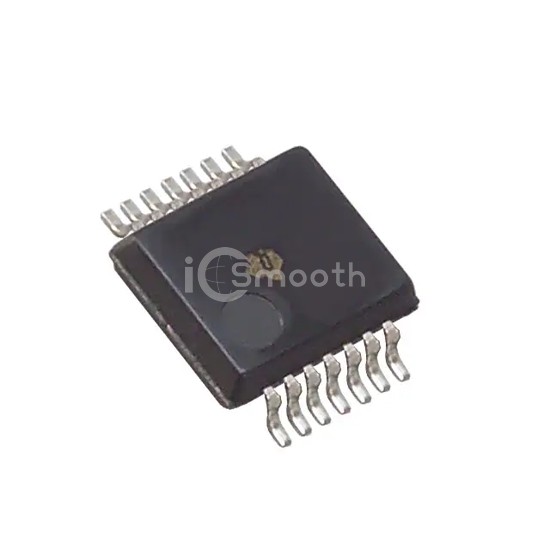

LM339DBR

IC QUAD DIFF COMPARATOR 14-SSOP

LM339DBR is a Linear - Comparators manufactured by Texas Instruments. IC QUAD DIFF COMPARATOR 14-SSOP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, package / case 14-SSOP (0.209", 5.30mm Width), output type CMOS, MOS, Open-Collector, TTL.

Datasheet Request a Quote

In Stock: 2,372

Tiered Pricing USD

1+ $0.3800 —

10+ $0.2650 -30%

25+ $0.2364 -38%

100+ $0.2042 -46%

250+ $0.1888 -50%

500+ $0.1796 -53%

1,000+ $0.1720 -55% BEST

Specifications

16 parameters

Product Status	Active
Type	Differential
Number of Elements	4
Output Type	CMOS, MOS, Open-Collector, TTL
Voltage - Supply, Single/Dual (±)	2V ~ 30V, ±1V ~ 15V
Voltage - Input Offset (Max)	5mV @ 30V
Current - Input Bias (Max)	0.25µA @ 5V
Current - Output (Typ)	20mA

Current - Quiescent (Max)	2.5mA
CMRR, PSRR (Typ)	-
Propagation Delay (Max)	-
Hysteresis	-
Operating Temperature	0°C ~ 70°C
Package / Case	14-SSOP (0.209", 5.30mm Width)
Mounting Type	Surface Mount
Supplier Device Package	14-SSOP
