LM317AH/NOPB

In Stock: 771

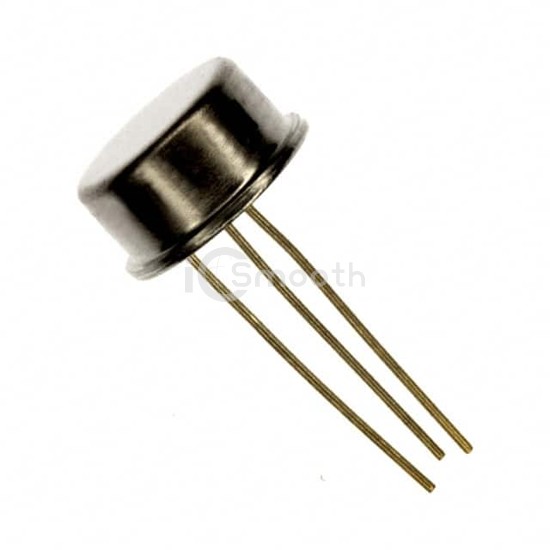

LM317AH/NOPB - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: LM317AH/NOPB Texas Instruments
LM317AH/NOPB

Texas Instruments

IC REG LINEAR POS ADJ 1.5A TO3

LM317AH/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR POS ADJ 1.5A TO3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-205AD, TO-39-3 Metal Can, current - output 1.5A.

Datasheet Request a Quote

In Stock: 771

Tiered Pricing USD
1+ $23.8900 —
10+ $19.1730 -20%
25+ $17.9952 -25%
100+ $16.7006 -30%
250+ $16.0835 -33%
500+ $15.7117 -34% BEST

Specifications

18 parameters
Product StatusActive
Output ConfigurationPositive
Output TypeAdjustable
Number of Regulators1
Voltage - Input (Max)40V
Voltage - Output (Min/Fixed)1.25V
Voltage - Output (Max)37V
Voltage Dropout (Max)-
Current - Output1.5A
Current - Quiescent (Iq)10 mA
Current - Supply (Max)-
PSRR80dB ~ 65dB (120Hz)
Control Features-
Protection FeaturesOver Current, Over Temperature, Short Circuit
Operating Temperature-40°C ~ 125°C
Mounting TypeThrough Hole
Package / CaseTO-205AD, TO-39-3 Metal Can
Supplier Device PackageTO-3
