Name: LM2825N-12
Brand: Texas Instruments
SKU: LM2825N-12
Price: 31.33 USD
Availability: InStock

REF: LM2825N-12 Texas Instruments

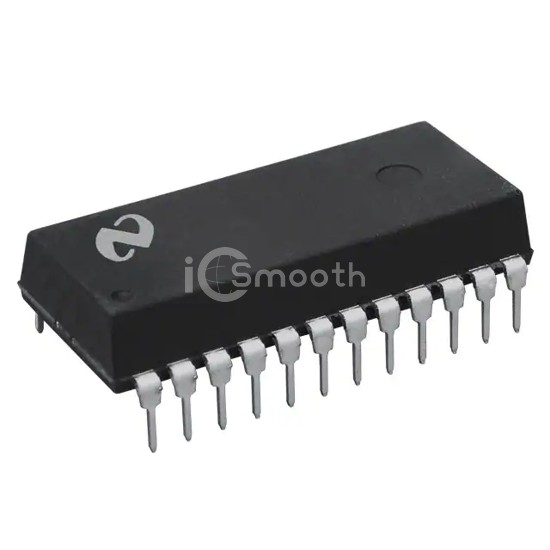

LM2825N-12

IC REG BUCK 12V 1A 24DIP

LM2825N-12 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BUCK 12V 1A 24DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C (TA), package / case 24-DIP (0.600", 15.24mm), current - output 1A.

Datasheet Request a Quote

In Stock: 8,316

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	15V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	12V

Voltage - Output (Max)	-
Current - Output	1A
Frequency - Switching	150kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Through Hole
Package / Case	24-DIP (0.600", 15.24mm)
Supplier Device Package	24-PDIP
