Name: LM2750LD-ADJ
Brand: Texas Instruments
SKU: LM2750LD-ADJ
Price: 1.16 USD
Availability: InStock

REF: LM2750LD-ADJ Texas Instruments

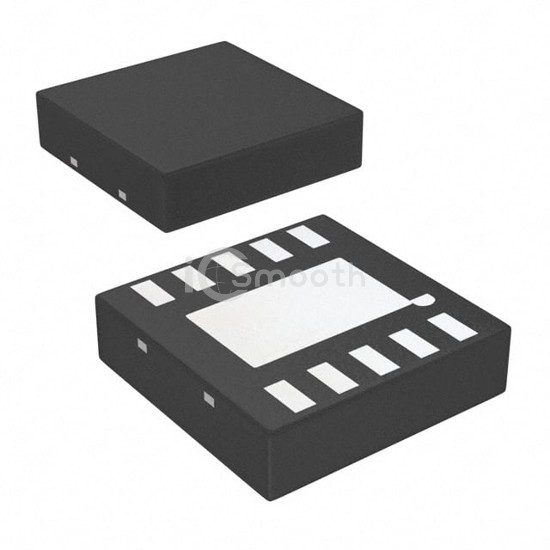

LM2750LD-ADJ

IC REG CHARG PUMP ADJ 10WSON

LM2750LD-ADJ is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG CHARG PUMP ADJ 10WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-WFDFN Exposed Pad, current - output 120mA.

Datasheet Request a Quote

In Stock: 3,691

Tiered Pricing USD

1,000+ $1.1598 —

2,000+ $1.1294 -3%

3,000+ $1.1142 -4%

5,000+ $1.0973 -5%

7,000+ $1.0875 -6% BEST

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Up
Output Configuration	Positive
Topology	Charge Pump
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.7V
Voltage - Input (Max)	5.6V
Voltage - Output (Min/Fixed)	3.8V

Voltage - Output (Max)	5.2V
Current - Output	120mA
Frequency - Switching	1.7MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-WFDFN Exposed Pad
Supplier Device Package	10-WSON (3x3)
