Name: LM2647LQ
Brand: Texas Instruments
SKU: LM2647LQ
Price: 2.72 USD
Availability: InStock

REF: LM2647LQ Texas Instruments

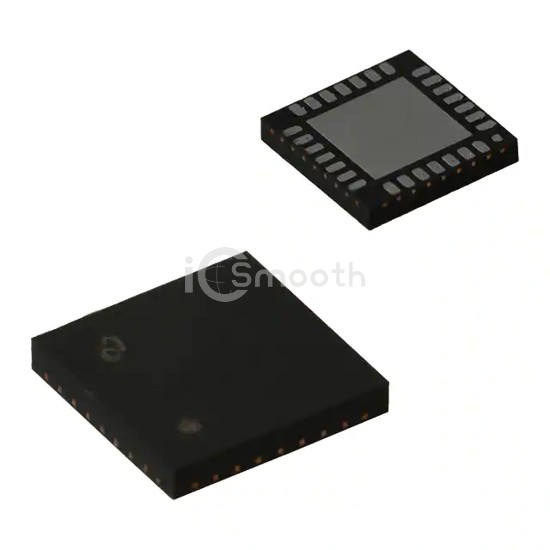

LM2647LQ

IC REG CTRLR BUCK 28WQFN

LM2647LQ is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Texas Instruments. IC REG CTRLR BUCK 28WQFN. Key specifications: mounting type Surface Mount, operating temperature -5°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 5.5V ~ 28V, package / case 28-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 7,996

Tiered Pricing USD

1,000+ $2.7168 —

2,000+ $2.6556 -2%

3,000+ $2.6250 -3% BEST

Specifications

18 parameters

Product Status	Obsolete
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	2
Output Phases	2
Voltage - Supply (Vcc/Vdd)	5.5V ~ 28V
Frequency - Switching	200kHz ~ 500kHz

Duty Cycle (Max)	75%
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature	-5°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	28-WFQFN Exposed Pad
Supplier Device Package	28-WQFN (5x5)
