Name: LM2574MX-15
Brand: Texas Instruments
SKU: LM2574MX-15
Price: 1.20 USD
Availability: InStock

REF: LM2574MX-15 Texas Instruments

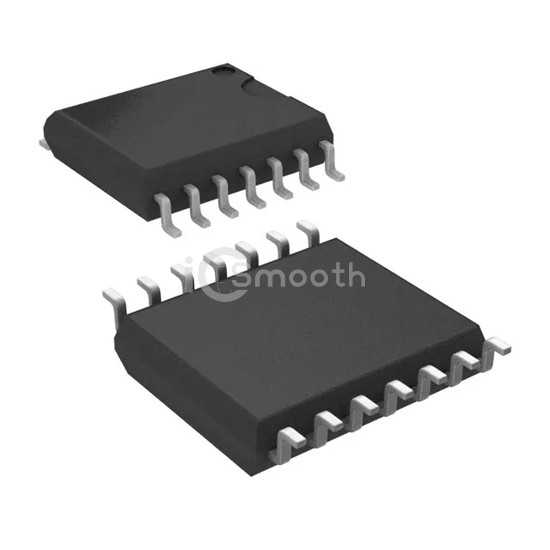

LM2574MX-15

IC REG BUCK 15V 500MA 14SOIC

LM2574MX-15 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Texas Instruments. IC REG BUCK 15V 500MA 14SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 14-SOIC (0.295", 7.50mm Width), current - output 500mA.

Datasheet Request a Quote

In Stock: 5,485

Tiered Pricing USD

1,000+ $1.2014 —

2,000+ $1.1702 -3%

3,000+ $1.1545 -4%

5,000+ $1.1371 -5%

7,000+ $1.1270 -6% BEST

Specifications

17 parameters

Product Status	Obsolete
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	4V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	15V

Voltage - Output (Max)	-
Current - Output	500mA
Frequency - Switching	52kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.295", 7.50mm Width)
Supplier Device Package	14-SOIC
