LM236H-2.5/NOPB

In Stock: 4,772

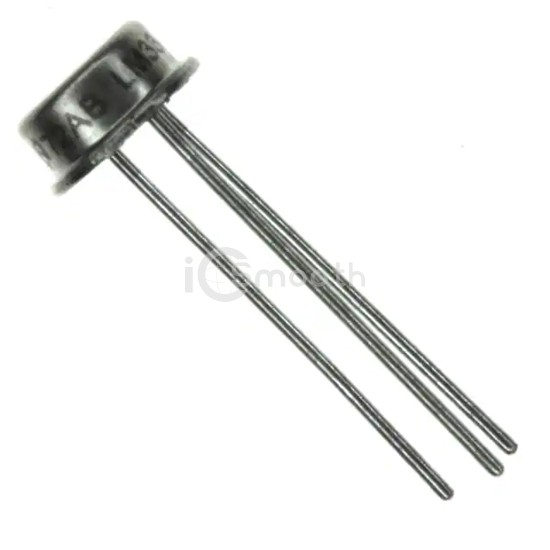

LM236H-2.5/NOPB - Texas Instruments - PMIC - Voltage Reference
REF: LM236H-2.5/NOPB Texas Instruments
LM236H-2.5/NOPB

Texas Instruments

IC VREF SHUNT 2% TO46-3

LM236H-2.5/NOPB is a PMIC - Voltage Reference manufactured by Texas Instruments. IC VREF SHUNT 2% TO46-3. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C (TA), package / case TO-206AB, TO-46-3 Metal Can, current - output 10 mA.

Datasheet Request a Quote

In Stock: 4,772

Tiered Pricing USD
1+ $16.2400 —
10+ $12.8760 -21%
25+ $12.0352 -26%
100+ $11.1110 -32%
250+ $10.6703 -34%
500+ $10.4047 -36% BEST

Specifications

17 parameters
Product StatusActive
Reference TypeShunt
Output TypeFixed
Voltage - Output (Min/Fixed)2.49V
Voltage - Output (Max)-
Current - Output10 mA
Tolerance±2%
Temperature Coefficient-
Noise - 0.1Hz to 10Hz-
Noise - 10Hz to 10kHz-
Voltage - Input-
Current - Supply-
Current - Cathode400 µA
Operating Temperature-25°C ~ 85°C (TA)
Mounting TypeThrough Hole
Package / CaseTO-206AB, TO-46-3 Metal Can
Supplier Device PackageTO-46-3
