Name: LM219J
Brand: Texas Instruments
SKU: LM219J
Price: 15.65 USD
Availability: InStock

REF: LM219J Texas Instruments

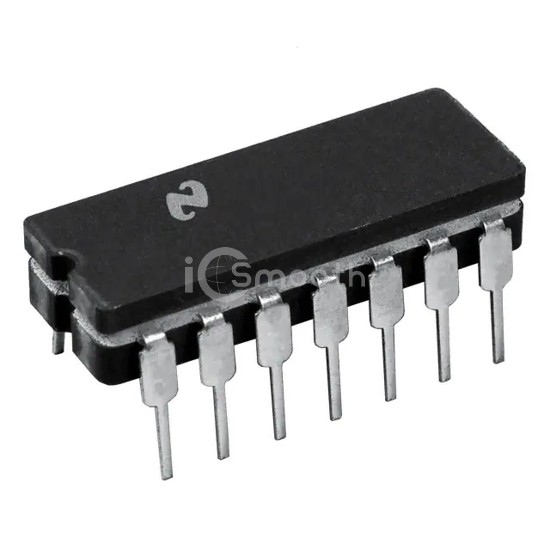

LM219J

IC COMP DUAL HIGH SPEED 14-CDIP

LM219J is a Linear - Comparators manufactured by Texas Instruments. IC COMP DUAL HIGH SPEED 14-CDIP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 85°C, package / case 14-CDIP (0.300", 7.62mm), output type DTL, Open-Collector, Open-Emitter, RTL, TTL.

Datasheet Request a Quote

In Stock: 4,366

Specifications

16 parameters

Product Status	Obsolete
Type	General Purpose
Number of Elements	2
Output Type	DTL, Open-Collector, Open-Emitter, RTL, TTL
Voltage - Supply, Single/Dual (±)	5V ~ 36V, ±2.5V ~ 18V
Voltage - Input Offset (Max)	4mV @ ±15V
Current - Input Bias (Max)	0.5µA @ ±15V
Current - Output (Typ)	-

Current - Quiescent (Max)	4.3mA
CMRR, PSRR (Typ)	-
Propagation Delay (Max)	-
Hysteresis	-
Operating Temperature	-25°C ~ 85°C
Package / Case	14-CDIP (0.300", 7.62mm)
Mounting Type	Through Hole
Supplier Device Package	14-CDIP
