Name: LM139J
Brand: Texas Instruments
SKU: LM139J
Availability: InStock

REF: LM139J Texas Instruments

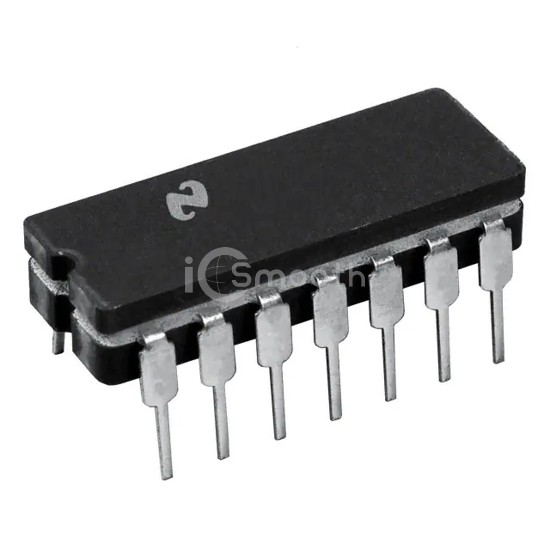

LM139J

IC COMP QUAD LPWR L OFF V 14CDIP

LM139J is a Linear - Comparators manufactured by Texas Instruments. IC COMP QUAD LPWR L OFF V 14CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 14-CDIP (0.300", 7.62mm), output type Open-Collector, Open-Drain.

Request a Quote

In Stock: 3,655

Specifications

16 parameters

Product Status	Active
Type	Differential
Number of Elements	4
Output Type	Open-Collector, Open-Drain
Voltage - Supply, Single/Dual (±)	2V ~ 30V, ±1V ~ 15V
Voltage - Input Offset (Max)	5mV @ 1.4V
Current - Input Bias (Max)	0.1µA @ 1.4V
Current - Output (Typ)	20mA

Current - Quiescent (Max)	2mA
CMRR, PSRR (Typ)	-
Propagation Delay (Max)	-
Hysteresis	-
Operating Temperature	-55°C ~ 125°C
Package / Case	14-CDIP (0.300", 7.62mm)
Mounting Type	Through Hole
Supplier Device Package	14-CDIP
