LM136H-5.0/NOPB

In Stock: 7,750

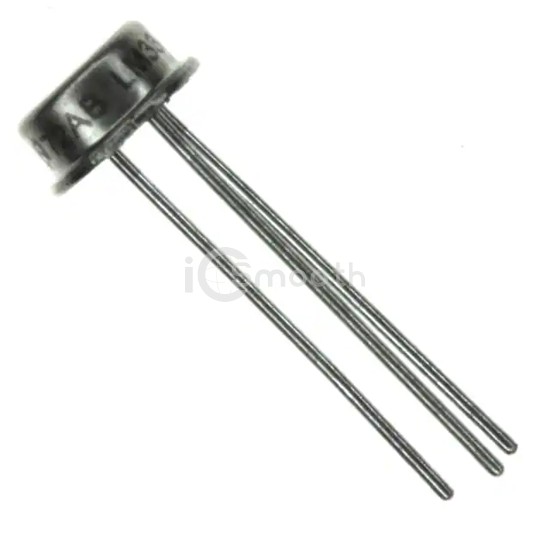

LM136H-5.0/NOPB - Texas Instruments - PMIC - Voltage Reference
REF: LM136H-5.0/NOPB Texas Instruments
LM136H-5.0/NOPB

Texas Instruments

IC VREF SHUNT 2% TO46-3

LM136H-5.0/NOPB is a PMIC - Voltage Reference manufactured by Texas Instruments. IC VREF SHUNT 2% TO46-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case TO-206AB, TO-46-3 Metal Can, current - output 10 mA.

Datasheet Request a Quote

In Stock: 7,750

Tiered Pricing USD
1+ $20.3800 —
10+ $16.2730 -20%
25+ $15.2472 -25%
100+ $14.1201 -31%
250+ $13.5828 -33%
500+ $13.2591 -35% BEST

Specifications

17 parameters
Product StatusActive
Reference TypeShunt
Output TypeFixed
Voltage - Output (Min/Fixed)5V
Voltage - Output (Max)-
Current - Output10 mA
Tolerance±2%
Temperature Coefficient-
Noise - 0.1Hz to 10Hz-
Noise - 10Hz to 10kHz-
Voltage - Input-
Current - Supply-
Current - Cathode600 µA
Operating Temperature-55°C ~ 125°C (TA)
Mounting TypeThrough Hole
Package / CaseTO-206AB, TO-46-3 Metal Can
Supplier Device PackageTO-46-3
