LM120H-15

In Stock: 7,191

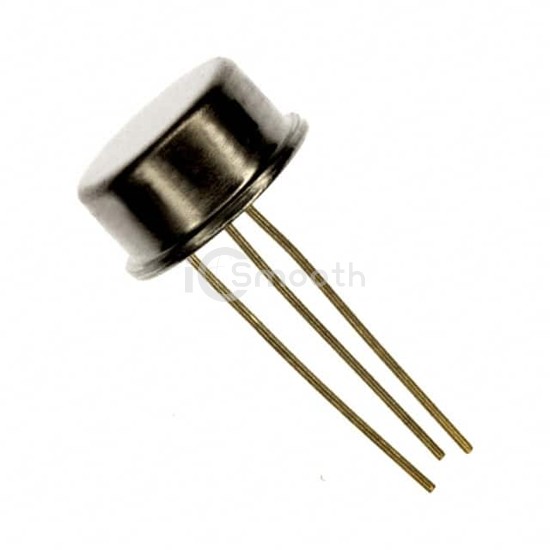

LM120H-15 - Texas Instruments - PMIC - Voltage Regulators - Linear
REF: LM120H-15 Texas Instruments
LM120H-15

Texas Instruments

IC REG LINEAR -15V 200MA TO39-3

LM120H-15 is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR -15V 200MA TO39-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-205AD, TO-39-3 Metal Can, current - output 200mA.

Datasheet Request a Quote

In Stock: 7,191

Specifications

18 parameters
Product StatusActive
Output ConfigurationNegative
Output TypeFixed
Number of Regulators1
Voltage - Input (Max)-35V
Voltage - Output (Min/Fixed)-15V
Voltage - Output (Max)-
Voltage Dropout (Max)-
Current - Output200mA
Current - Quiescent (Iq)1 mA
Current - Supply (Max)-
PSRR64dB (120Hz)
Control Features-
Protection FeaturesOver Temperature
Operating Temperature-55°C ~ 150°C
Mounting TypeThrough Hole
Package / CaseTO-205AD, TO-39-3 Metal Can
Supplier Device PackageTO-3
