Name: LM109H/NOPB
Brand: Texas Instruments
SKU: LM109H/NOPB
Price: 23.97 USD
Availability: InStock

REF: LM109H/NOPB Texas Instruments

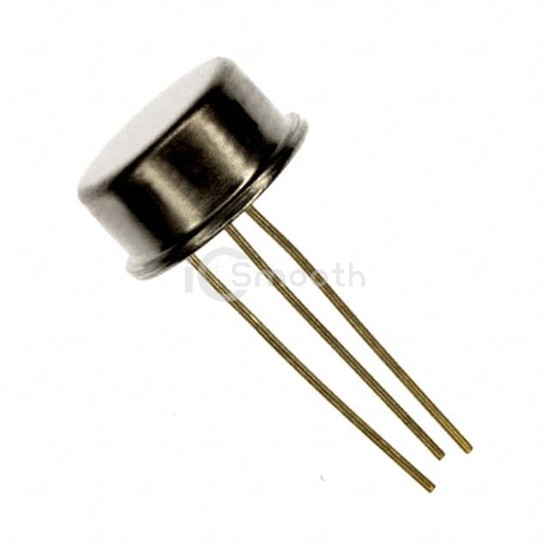

LM109H/NOPB

IC REG LINEAR 5.05V 200MA TO39-3

LM109H/NOPB is a PMIC - Voltage Regulators - Linear manufactured by Texas Instruments. IC REG LINEAR 5.05V 200MA TO39-3. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-205AD, TO-39-3 Metal Can, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 443

Tiered Pricing USD

1+ $23.9700 —

10+ $19.2400 -20%

25+ $18.0580 -25%

100+ $16.7598 -30%

250+ $16.1409 -33%

500+ $15.7680 -34% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	25V
Voltage - Output (Min/Fixed)	5.05V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	200mA

Current - Quiescent (Iq)	5.2 mA
Current - Supply (Max)	10 mA
PSRR	-
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-55°C ~ 150°C
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-3
