Name: ISOW1432BDFMR
Brand: Texas Instruments
SKU: ISOW1432BDFMR
Price: 11.54 USD
Availability: InStock

REF: ISOW1432BDFMR Texas Instruments

ISOW1432BDFMR

Texas Instruments

LOW EMISSIONS, 5-KVRMS, 12-MBPS

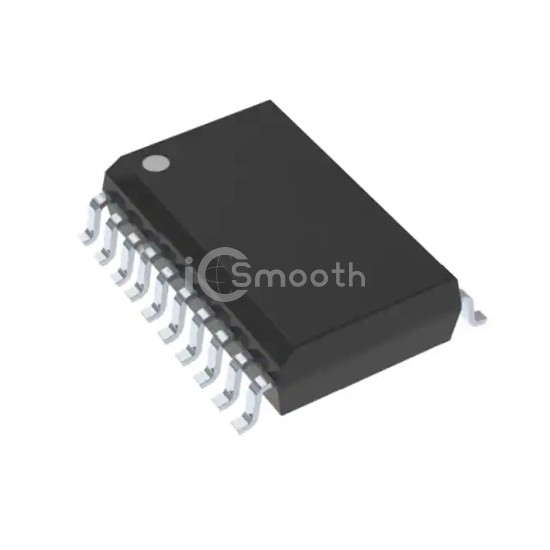

ISOW1432BDFMR is a Digital Isolators manufactured by Texas Instruments. LOW EMISSIONS, 5-KVRMS, 12-MBPS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.71V ~ 1.89V, 2.25V ~ 5.5V, package / case 20-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,559

Tiered Pricing USD

1+ $11.5400 —

10+ $9.0480 -22%

25+ $8.4244 -27%

100+ $7.7393 -33%

250+ $7.4128 -36% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	RS422, RS485
Isolated Power	Yes
Number of Channels	4
Inputs - Side 1/Side 2	2/2
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	100kV/µs (Typ)

Data Rate	12Mbps
Propagation Delay tpLH / tpHL (Max)	610ns, 610ns
Pulse Width Distortion (Max)	40ns
Rise / Fall Time (Typ)	4ns, 4ns (Max)
Voltage - Supply	1.71V ~ 1.89V, 2.25V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	20-SOIC (0.295", 7.50mm Width)
Supplier Device Package	20-SOIC
