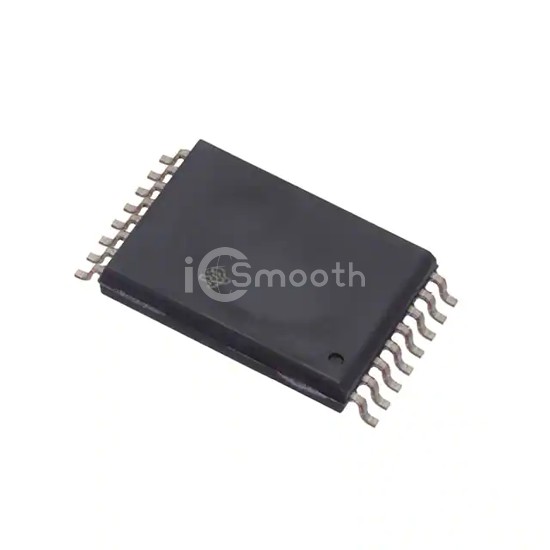

Name: ISO7741QDWWQ1
Brand: Texas Instruments
SKU: ISO7741QDWWQ1
Price: 5.82 USD
Availability: InStock

REF: ISO7741QDWWQ1 Texas Instruments

ISO7741QDWWQ1

Texas Instruments

AUTO DGT ISO 4CH WIDE DWW PKG

ISO7741QDWWQ1 is a Digital Isolators manufactured by Texas Instruments. AUTO DGT ISO 4CH WIDE DWW PKG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.25V ~ 5.5V, package / case 16-SOIC (0.551", 14.00mm Width).

Datasheet Request a Quote

In Stock: 4,795

Tiered Pricing USD

1+ $5.8200 —

10+ $4.4590 -23%

45+ $3.9413 -32%

135+ $3.6799 -37%

270+ $3.5520 -39%

540+ $3.4467 -41%

1,035+ $3.3649 -42%

2,520+ $3.2746 -44% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	3/1
Channel Type	Unidirectional
Voltage - Isolation	5700Vrms
Common Mode Transient Immunity (Min)	85kV/µs

Data Rate	100Mbps
Propagation Delay tpLH / tpHL (Max)	16ns, 16ns
Pulse Width Distortion (Max)	4.9ns
Rise / Fall Time (Typ)	2.4ns, 2.4ns
Voltage - Supply	2.25V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.551", 14.00mm Width)
Supplier Device Package	16-SOIC
