Name: ISO150AU
Brand: Texas Instruments
SKU: ISO150AU
Availability: InStock

REF: ISO150AU Texas Instruments

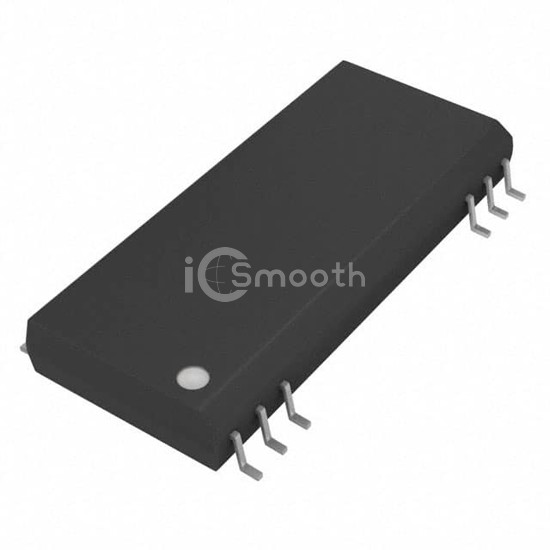

ISO150AU

DGTL ISO 1.5KV GEN PURP 12SOP

ISO150AU is a Digital Isolators manufactured by Texas Instruments. DGTL ISO 1.5KV GEN PURP 12SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3V ~ 5.5V, package / case 28-SOIC (0.295", 7.50mm Width), 8 Leads.

Datasheet Request a Quote

In Stock: 5,510

Specifications

18 parameters

Product Status	Obsolete
Technology	Capacitive Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	2
Inputs - Side 1/Side 2	2/2
Channel Type	Bidirectional
Voltage - Isolation	1500Vrms
Common Mode Transient Immunity (Min)	1.6kV/µs (Typ)

Data Rate	80MBd
Propagation Delay tpLH / tpHL (Max)	40ns, 40ns
Pulse Width Distortion (Max)	6ns
Rise / Fall Time (Typ)	9ns, 9ns
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	28-SOIC (0.295", 7.50mm Width), 8 Leads
Supplier Device Package	8-SOIC
