Name: ISO120SG
Brand: Texas Instruments
SKU: ISO120SG
Price: 515.16 USD
Availability: InStock

REF: ISO120SG Texas Instruments

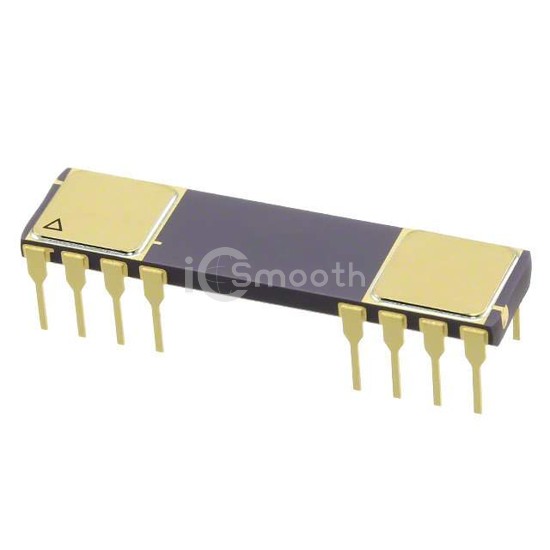

ISO120SG

IC OPAMP ISOLATION 1 CIRC 16CDIP

ISO120SG is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC OPAMP ISOLATION 1 CIRC 16CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 24-CDIP (0.300", 7.62mm), 16 Leads, current - supply 4mA.

Datasheet Request a Quote

In Stock: 8,996

Specifications

17 parameters

Product Status	Active
Amplifier Type	Isolation
Number of Circuits	1
Output Type	-
Slew Rate	2V/µs
Gain Bandwidth Product	-
-3db Bandwidth	60 kHz
Current - Input Bias	-
Voltage - Input Offset	10 mV

Current - Supply	4mA
Current - Output / Channel	15 mA
Voltage - Supply Span (Min)	9 V
Voltage - Supply Span (Max)	36 V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	24-CDIP (0.300", 7.62mm), 16 Leads
Supplier Device Package	16-CDIP
