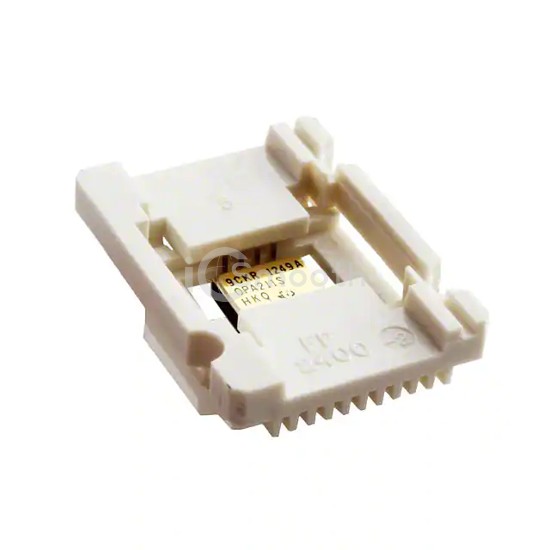

Name: INA333SHKQ
Brand: Texas Instruments
SKU: INA333SHKQ
Availability: InStock

REF: INA333SHKQ Texas Instruments

INA333SHKQ

IC INST AMP 1 CIRCUIT 8CFP

INA333SHKQ is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC INST AMP 1 CIRCUIT 8CFP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 210°C, package / case 8-CSOIC (0.220", 5.65mm Width), current - supply 50µA.

Datasheet Request a Quote

In Stock: 4,792

Specifications

17 parameters

Product Status	Active
Amplifier Type	Instrumentation
Number of Circuits	1
Output Type	Rail-to-Rail
Slew Rate	0.16V/µs
Gain Bandwidth Product	-
-3db Bandwidth	150 kHz
Current - Input Bias	70 pA
Voltage - Input Offset	10 µV

Current - Supply	50µA
Current - Output / Channel	55 mA
Voltage - Supply Span (Min)	1.8 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-55°C ~ 210°C
Mounting Type	Surface Mount
Package / Case	8-CSOIC (0.220", 5.65mm Width)
Supplier Device Package	8-CFP
