Name: INA186A2IYFDR
Brand: Texas Instruments
SKU: INA186A2IYFDR
Price: 1.54 USD
Availability: InStock

REF: INA186A2IYFDR Texas Instruments

INA186A2IYFDR

Texas Instruments

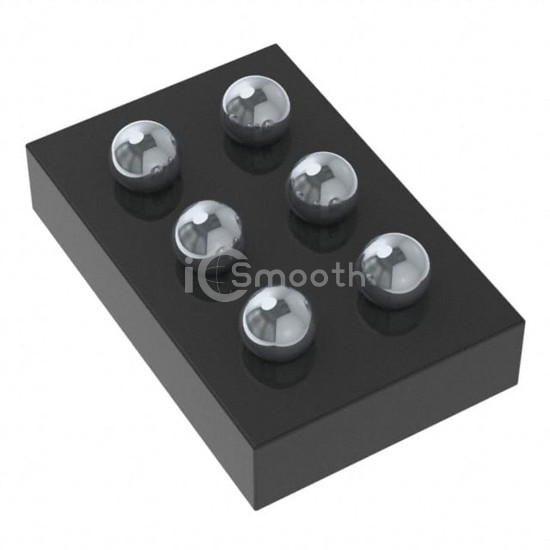

IC CURR SENSE 1 CIRCUIT 6DSBGA

INA186A2IYFDR is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Texas Instruments. IC CURR SENSE 1 CIRCUIT 6DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-XFBGA, DSBGA, current - supply 48µA.

Request a Quote

In Stock: 6,664

Specifications

17 parameters

Product Status	Active
Amplifier Type	Current Sense
Number of Circuits	1
Output Type	Rail-to-Rail
Slew Rate	0.3V/µs
Gain Bandwidth Product	37 kHz
-3db Bandwidth	-
Current - Input Bias	500 nA
Voltage - Input Offset	3 µV

Current - Supply	48µA
Current - Output / Channel	-
Voltage - Supply Span (Min)	1.7 V
Voltage - Supply Span (Max)	5.5 V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	6-XFBGA, DSBGA
Supplier Device Package	6-DSBGA (1.17x0.77)
