Name: ESD224DQAR
Brand: Texas Instruments
SKU: ESD224DQAR
Price: 0.80 USD
Availability: InStock

REF: ESD224DQAR Texas Instruments

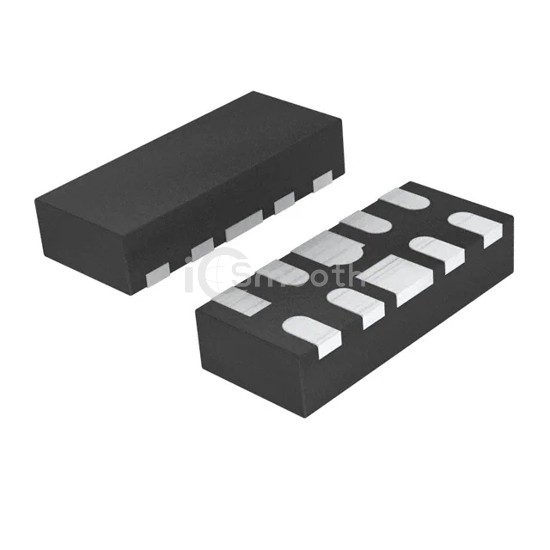

ESD224DQAR

TVS DIODE 3.6VWM 14VC 10USON

ESD224DQAR is a TVS - Diodes manufactured by Texas Instruments. TVS DIODE 3.6VWM 14VC 10USON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 10-UFDFN.

Datasheet Request a Quote

In Stock: 5,551

Tiered Pricing USD

1+ $0.8000 —

10+ $0.4980 -38%

100+ $0.3220 -60%

500+ $0.2459 -69%

1,000+ $0.2214 -72% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	4
Voltage - Reverse Standoff (Typ)	3.6V (Max)
Voltage - Breakdown (Min)	7.9V
Voltage - Clamping (Max) @ Ipp	14V
Current - Peak Pulse (10/1000µs)	2A (8/20µs)

Power - Peak Pulse	17W
Power Line Protection	No
Applications	Ethernet, HDMI, USB
Capacitance @ Frequency	0.5pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	10-UFDFN
Supplier Device Package	10-USON (2.5x1)
