Name: ESD122DMXR
Brand: Texas Instruments
SKU: ESD122DMXR
Price: 0.91 USD
Availability: InStock

REF: ESD122DMXR Texas Instruments

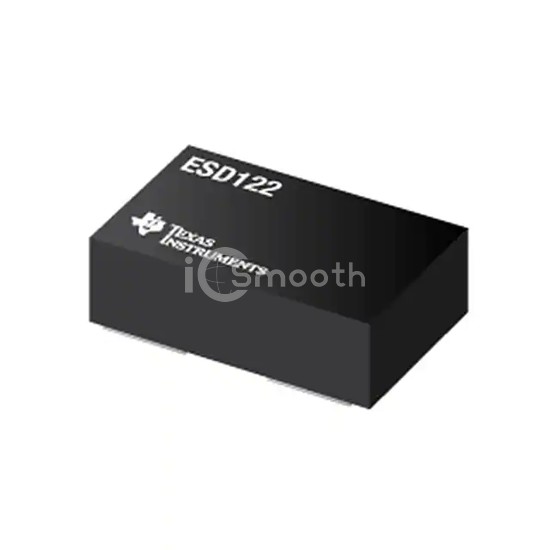

ESD122DMXR

TVS DIODE 3.6VWM 8.4VC 3X2SON

ESD122DMXR is a TVS - Diodes manufactured by Texas Instruments. TVS DIODE 3.6VWM 8.4VC 3X2SON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 3-XFDFN.

Datasheet Request a Quote

In Stock: 4,459

Tiered Pricing USD

1+ $0.9100 —

10+ $0.5700 -37%

100+ $0.3690 -59%

500+ $0.2820 -69%

1,000+ $0.2540 -72%

2,000+ $0.2417 -73% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	-
Bidirectional Channels	2
Voltage - Reverse Standoff (Typ)	3.6V (Max)
Voltage - Breakdown (Min)	5.1V
Voltage - Clamping (Max) @ Ipp	8.4V (Typ)
Current - Peak Pulse (10/1000µs)	2.5A (8/20µs)

Power - Peak Pulse	20W
Power Line Protection	No
Applications	HDMI, USB
Capacitance @ Frequency	0.2pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	3-XFDFN
Supplier Device Package	3-X2SON (1x0.6)
