DS15BA101SD/NOPB

In Stock: 1,224

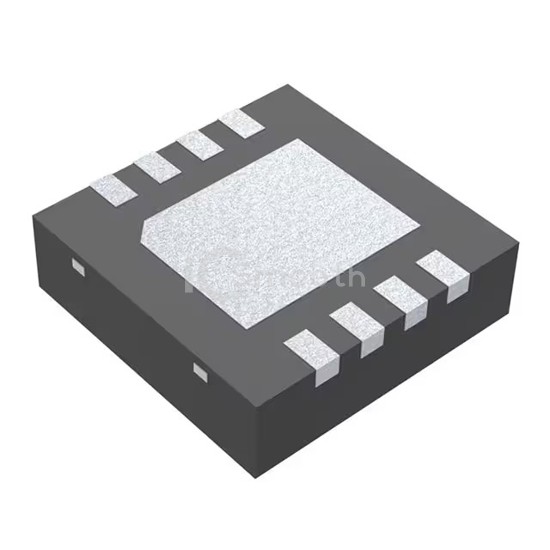

DS15BA101SD/NOPB - Texas Instruments - Interface - Signal Buffers, Repeaters, Splitters
REF: DS15BA101SD/NOPB Texas Instruments
DS15BA101SD/NOPB

Texas Instruments

IC REDRIVER LVDS 1CH 8WSON

DS15BA101SD/NOPB is a Interface - Signal Buffers, Repeaters, Splitters manufactured by Texas Instruments. IC REDRIVER LVDS 1CH 8WSON. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 3.135V ~ 3.465V, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,224

Tiered Pricing USD
1+ $5.5700 —
10+ $4.2590 -24%
25+ $3.9320 -29%
100+ $3.5718 -36%
250+ $3.4001 -39%
500+ $3.2967 -41% BEST

Specifications

16 parameters
Product StatusActive
TypeBuffer, ReDriver
ApplicationsLVDS
InputCML, LVDS, LVPECL
OutputCML, LVDS
Data Rate (Max)1.5Gbps
Number of Channels1
Delay Time1.1ns
Signal Conditioning-
Capacitance - Input-
Voltage - Supply3.135V ~ 3.465V
Current - Supply45mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case8-WFDFN Exposed Pad
Supplier Device Package8-WSON (3x3)
