DS125BR820NJYR

In Stock: 5,048

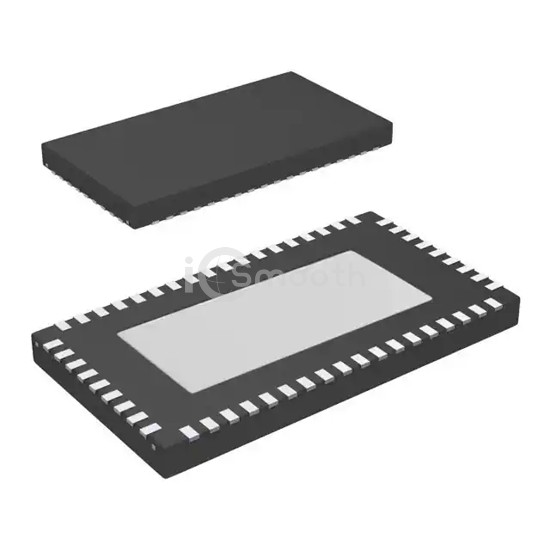

DS125BR820NJYR - Texas Instruments - Interface - Signal Buffers, Repeaters, Splitters
REF: DS125BR820NJYR Texas Instruments
DS125BR820NJYR

Texas Instruments

IC REDRIVER PCIE/SAS/SATA 54WQFN

DS125BR820NJYR is a Interface - Signal Buffers, Repeaters, Splitters manufactured by Texas Instruments. IC REDRIVER PCIE/SAS/SATA 54WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.5V ~ 3.3V, package / case 54-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 5,048

Specifications

16 parameters
Product StatusActive
TypeBuffer, ReDriver
ApplicationsPCIe, SAS, SATA
InputCML
OutputCML
Data Rate (Max)12.5Gbps
Number of Channels8
Delay Time80ps
Signal ConditioningInput Equalization, Output De-Emphasis
Capacitance - Input-
Voltage - Supply2.5V ~ 3.3V
Current - Supply220mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case54-WFQFN Exposed Pad
Supplier Device Package54-WQFN (10x5.5)
