DS125BR800SQ/NOPB

In Stock: 6,772

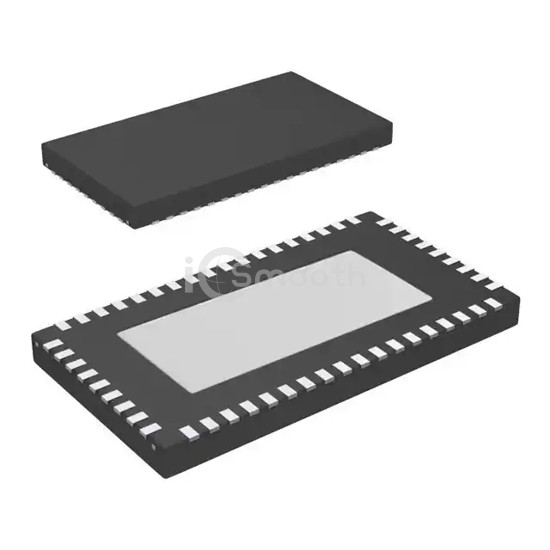

DS125BR800SQ/NOPB - Texas Instruments - Interface - Signal Buffers, Repeaters, Splitters
REF: DS125BR800SQ/NOPB Texas Instruments
DS125BR800SQ/NOPB

Texas Instruments

IC REDRIVER PCIE/SAS 8CH 54WQFN

DS125BR800SQ/NOPB is a Interface - Signal Buffers, Repeaters, Splitters manufactured by Texas Instruments. IC REDRIVER PCIE/SAS 8CH 54WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.375V ~ 3.6V, package / case 54-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,772

Specifications

16 parameters
Product StatusActive
TypeBuffer, ReDriver
ApplicationsPCIe, SAS
InputCML
OutputCML
Data Rate (Max)12.5Gbps
Number of Channels8
Delay Time200ps
Signal ConditioningInput Equalization, Output De-Emphasis
Capacitance - Input10 pF
Voltage - Supply2.375V ~ 3.6V
Current - Supply-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case54-WFQFN Exposed Pad
Supplier Device Package54-WQFN (10x5.5)
