DS125BR401ANJYR

In Stock: 3,637

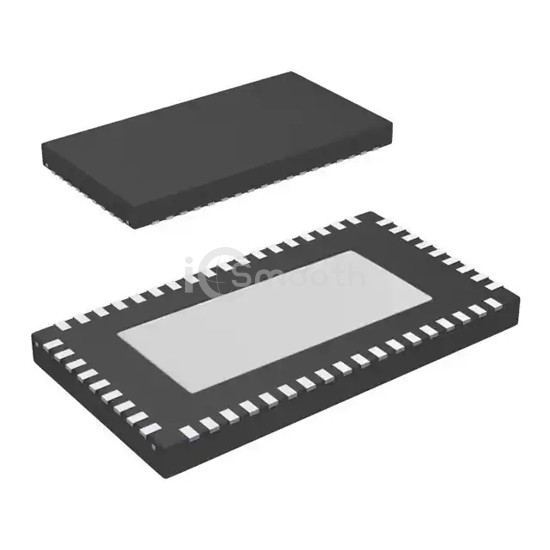

DS125BR401ANJYR - Texas Instruments - Interface - Signal Buffers, Repeaters, Splitters
REF: DS125BR401ANJYR Texas Instruments
DS125BR401ANJYR

Texas Instruments

IC REDRIVER PCIE/SAS/SATA 54WQFN

DS125BR401ANJYR is a Interface - Signal Buffers, Repeaters, Splitters manufactured by Texas Instruments. IC REDRIVER PCIE/SAS/SATA 54WQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2.375V ~ 3.6V, package / case 54-WFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,637

Tiered Pricing USD
1+ $15.0200 —
10+ $11.8790 -21%
25+ $11.0932 -26%
100+ $10.2300 -32%
250+ $9.8185 -35%
500+ $9.5705 -36%
1,000+ $9.3663 -38% BEST

Specifications

16 parameters
Product StatusActive
TypeBuffer, ReDriver
ApplicationsPCIe, SAS, SATA
InputCML
OutputCML
Data Rate (Max)12Gbps
Number of Channels4
Delay Time80ps
Signal ConditioningInput Equalization, Output De-Emphasis
Capacitance - Input5 pF
Voltage - Supply2.375V ~ 3.6V
Current - Supply-
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case54-WFQFN Exposed Pad
Supplier Device Package54-WQFN (10x5.5)
