Name: DRV8809PAP
Brand: Texas Instruments
SKU: DRV8809PAP
Price: 16.65 USD
Availability: InStock

REF: DRV8809PAP Texas Instruments

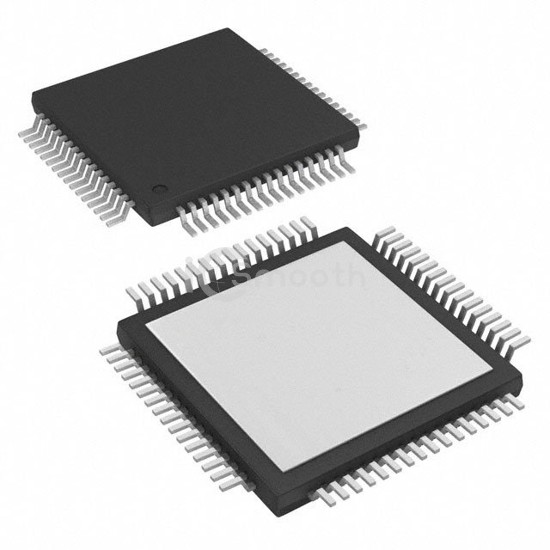

DRV8809PAP

IC MTR DRVR BIPOLAR 7-40V 64HQFP

DRV8809PAP is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. IC MTR DRVR BIPOLAR 7-40V 64HQFP. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 120°C (TJ), voltage - supply 7V ~ 40V, package / case 64-PowerTQFP.

Datasheet Request a Quote

In Stock: 1,378

Tiered Pricing USD

1+ $16.6500 —

10+ $13.2070 -21%

25+ $12.3476 -26%

160+ $11.1578 -33%

320+ $10.8503 -35%

640+ $10.5971 -36% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (8)
Interface	SPI
Technology	Power MOSFET
Step Resolution	1 ~ 1/16

Applications	General Purpose
Current - Output	800mA
Voltage - Supply	7V ~ 40V
Voltage - Load	18V ~ 40V
Operating Temperature	0°C ~ 120°C (TJ)
Mounting Type	Surface Mount
Package / Case	64-PowerTQFP
Supplier Device Package	64-HTQFP (10x10)
