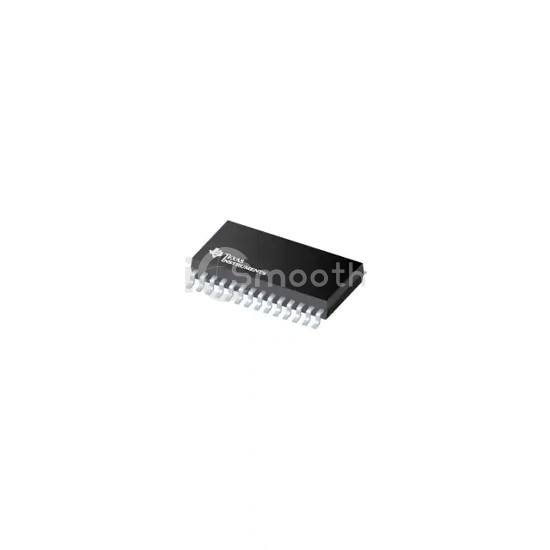

Name: DRV8424PWPR
Brand: Texas Instruments
SKU: DRV8424PWPR
Price: 3.63 USD
Availability: InStock

REF: DRV8424PWPR Texas Instruments

DRV8424PWPR

35V, 2.5A BIPOLAR STEPPER MOTOR

DRV8424PWPR is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. 35V, 2.5A BIPOLAR STEPPER MOTOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 0V ~ 5.5V, package / case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Request a Quote

In Stock: 5,023

Tiered Pricing USD

1+ $3.6300 —

10+ $2.7330 -25%

25+ $2.5096 -31%

100+ $2.2635 -38%

250+ $2.1463 -41%

500+ $2.0756 -43%

1,000+ $2.0174 -44% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (2)
Interface	Step/Direction
Technology	Power MOSFET
Step Resolution	>256 Microsteps

Applications	General Purpose
Current - Output	2.5A
Voltage - Supply	0V ~ 5.5V
Voltage - Load	4.5V ~ 33V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	28-HTSSOP
