Name: DRV8312DDWR
Brand: Texas Instruments
SKU: DRV8312DDWR
Price: 8.40 USD
Availability: InStock

REF: DRV8312DDWR Texas Instruments

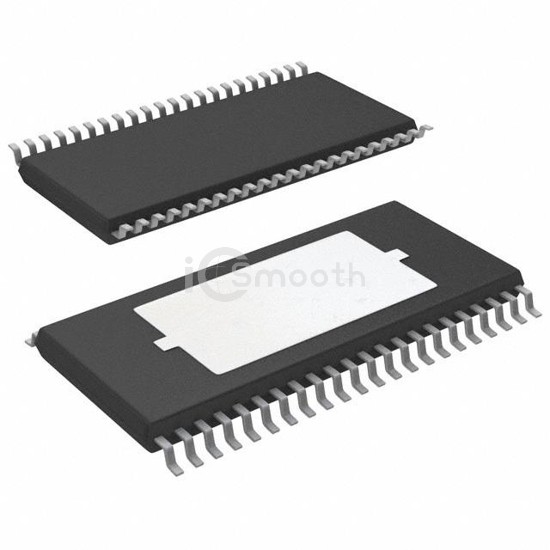

DRV8312DDWR

IC BRIDGE DRIVER PAR 44HTSSOP

DRV8312DDWR is a PMIC - Full, Half-Bridge Drivers manufactured by Texas Instruments. IC BRIDGE DRIVER PAR 44HTSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 10.8V ~ 13.2V, package / case 44-TSSOP (0.244", 6.20mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 9,418

Tiered Pricing USD

1+ $8.4000 —

10+ $6.5180 -22%

25+ $6.0464 -28%

100+ $5.5284 -34%

250+ $5.2814 -37%

500+ $5.1326 -39%

1,000+ $5.0101 -40% BEST

Specifications

17 parameters

Product Status	Active
Output Configuration	Half Bridge (3)
Applications	DC Motors, General Purpose
Interface	PWM
Load Type	Inductive
Technology	Power MOSFET
Rds On (Typ)	80mOhm LS, 80mOhm HS
Current - Output / Channel	3.5A
Current - Peak Output	6.5A

Voltage - Supply	10.8V ~ 13.2V
Voltage - Load	0V ~ 52.5V
Operating Temperature	-40°C ~ 150°C (TJ)
Features	Bootstrap Circuit, Status Flag
Fault Protection	Current Limiting, Over Temperature, Short Circuit, UVLO
Mounting Type	Surface Mount
Package / Case	44-TSSOP (0.244", 6.20mm Width) Exposed Pad
Supplier Device Package	44-HTSSOP
