Name: DRV8306HRSMT
Brand: Texas Instruments
SKU: DRV8306HRSMT
Price: 3.02 USD
Availability: InStock

REF: DRV8306HRSMT Texas Instruments

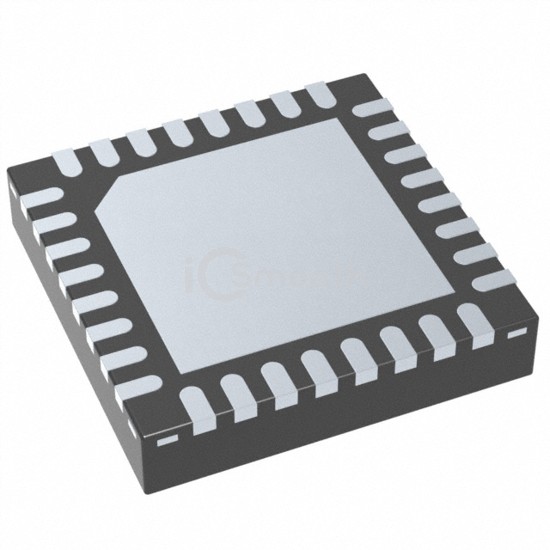

DRV8306HRSMT

IC MTR DRV MULTIPHAS 6-38V 32QFN

DRV8306HRSMT is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. IC MTR DRV MULTIPHAS 6-38V 32QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 6V ~ 38V, package / case 32-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,631

Tiered Pricing USD

1+ $3.0200 —

10+ $2.2630 -25%

25+ $2.0728 -31%

100+ $1.8639 -38% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Multiphase
Motor Type - AC, DC	Brushless DC (BLDC)
Function	Controller - Commutation, Direction Management
Output Configuration	Half Bridge (3)
Interface	PWM
Technology	Power MOSFET
Step Resolution	-

Applications	General Purpose
Current - Output	300mA
Voltage - Supply	6V ~ 38V
Voltage - Load	0V ~ 5.5V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Supplier Device Package	32-VQFN (4x4)
