Name: DRV8231DSGR
Brand: Texas Instruments
SKU: DRV8231DSGR
Price: 1.47 USD
Availability: InStock

REF: DRV8231DSGR Texas Instruments

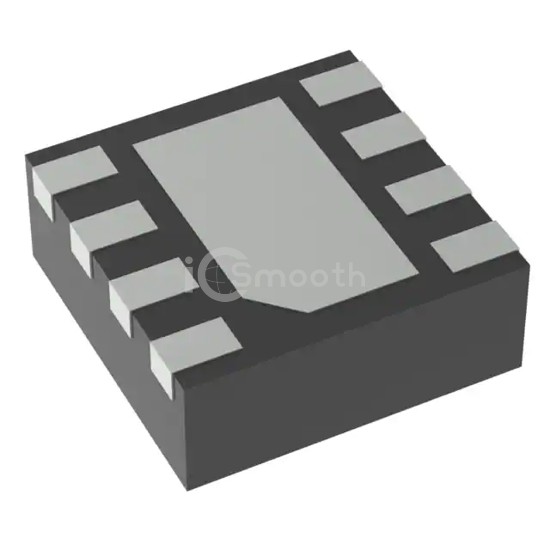

DRV8231DSGR

33V H BRIDGE MOTOR DRIVER WITH C

DRV8231DSGR is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. 33V H BRIDGE MOTOR DRIVER WITH C. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 33V, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,669

Tiered Pricing USD

1+ $1.4700 —

10+ $1.0740 -27%

25+ $0.9740 -34%

100+ $0.8645 -41%

250+ $0.8123 -45%

500+ $0.7808 -47%

1,000+ $0.7549 -49% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Pre-Driver - Half Bridge (2)
Interface	PWM
Technology	NMOS
Step Resolution	-

Applications	Printer
Current - Output	3.7A
Voltage - Supply	4.5V ~ 33V
Voltage - Load	4.5V ~ 33V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Supplier Device Package	8-WSON (2x2)
