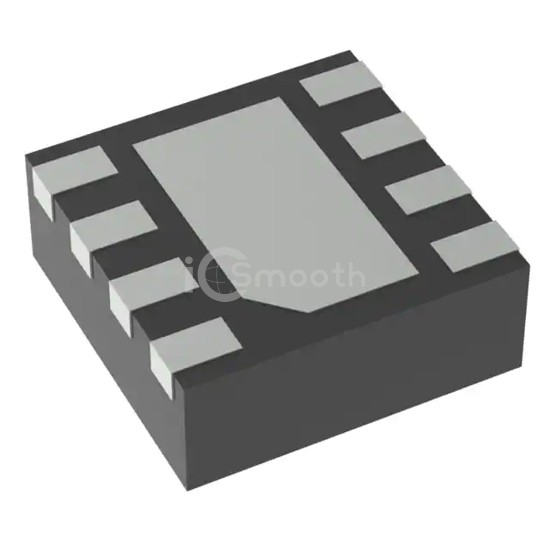

Name: DRV8220DSGR
Brand: Texas Instruments
SKU: DRV8220DSGR
Price: 0.88 USD
Availability: InStock

REF: DRV8220DSGR Texas Instruments

DRV8220DSGR

20-V, 1-A H-BRIDGE MOTOR DRIVER

DRV8220DSGR is a PMIC - Motor Drivers, Controllers manufactured by Texas Instruments. 20-V, 1-A H-BRIDGE MOTOR DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-WFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,967

Tiered Pricing USD

1+ $0.8800 —

10+ $0.6330 -28%

25+ $0.5704 -35%

100+ $0.5014 -43%

250+ $0.4684 -47%

500+ $0.4486 -49%

1,000+ $0.4322 -51% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Bipolar
Motor Type - AC, DC	Brushed DC
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (2)
Interface	PWM
Technology	Power MOSFET
Step Resolution	-

Applications	Brushed DC
Current - Output	1.76A
Voltage - Supply	4.5V ~ 18V
Voltage - Load	4.5V ~ 18V
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad
Supplier Device Package	8-WSON (2x2)
