DAC8228SRTQR

In Stock: 6,959

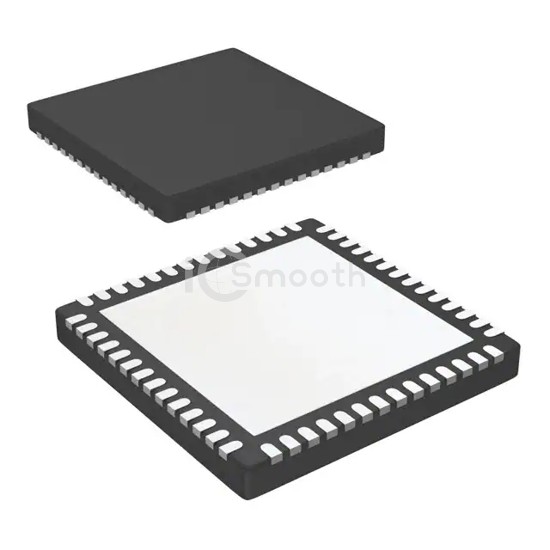

DAC8228SRTQR - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC8228SRTQR Texas Instruments
DAC8228SRTQR

Texas Instruments

IC DAC 14BIT V-OUT 56QFN

DAC8228SRTQR is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 14BIT V-OUT 56QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 56-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 6,959

Specifications

16 parameters
Product StatusActive
Number of Bits14
Number of D/A Converters8
Settling Time15µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog9V ~ 36V, ±4.5V ~ 18V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±1 (Max), ±1 (Max)
ArchitectureString DAC
Operating Temperature-40°C ~ 105°C
Package / Case56-VFQFN Exposed Pad
Supplier Device Package56-QFN (8x8)
Mounting TypeSurface Mount
