DAC80502DRXR

In Stock: 9,359

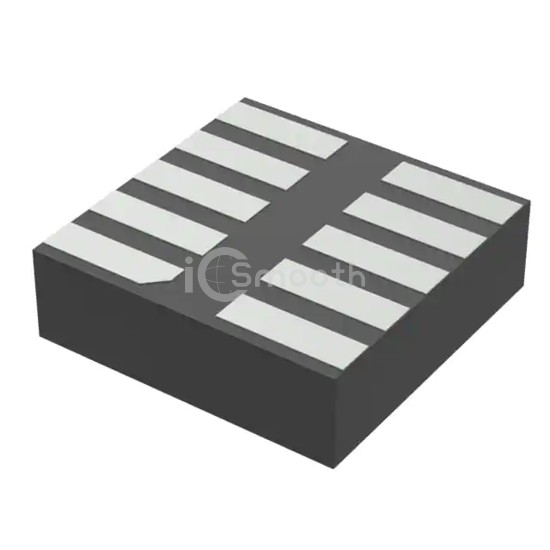

DAC80502DRXR - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC80502DRXR Texas Instruments
DAC80502DRXR

Texas Instruments

DUAL CHANNEL DAC 16BIT

DAC80502DRXR is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. DUAL CHANNEL DAC 16BIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 10-WFDFN.

Datasheet Request a Quote

In Stock: 9,359

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters1
Settling Time-
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceI²C, Serial, SPI
Reference TypeInternal
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±1, ±1
ArchitectureR-2R
Operating Temperature-40°C ~ 125°C
Package / Case10-WFDFN
Supplier Device Package10-WSON (2.5x2.5)
Mounting TypeSurface Mount
