DAC80501ZDQFT

In Stock: 9,995

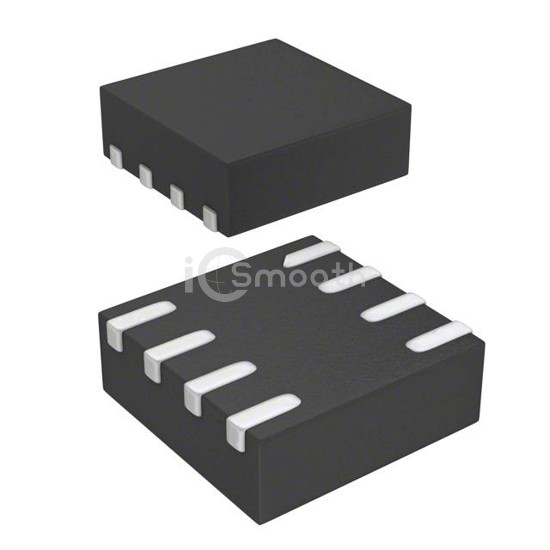

DAC80501ZDQFT - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC80501ZDQFT Texas Instruments
DAC80501ZDQFT

Texas Instruments

SINGALE CHANNEL DAC 16BIT

DAC80501ZDQFT is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. SINGALE CHANNEL DAC 16BIT. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 8-WFDFN.

Datasheet Request a Quote

In Stock: 9,995

Tiered Pricing USD
1+ $8.4700 —
10+ $6.5710 -22%
25+ $6.0968 -28%
100+ $5.5751 -34% BEST

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters1
Settling Time5µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceI²C, SPI
Reference TypeExternal, Internal
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±1 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 125°C
Package / Case8-WFDFN
Supplier Device Package8-WSON (2x2)
Mounting TypeSurface Mount
