DAC80501MDQFR

In Stock: 2,081

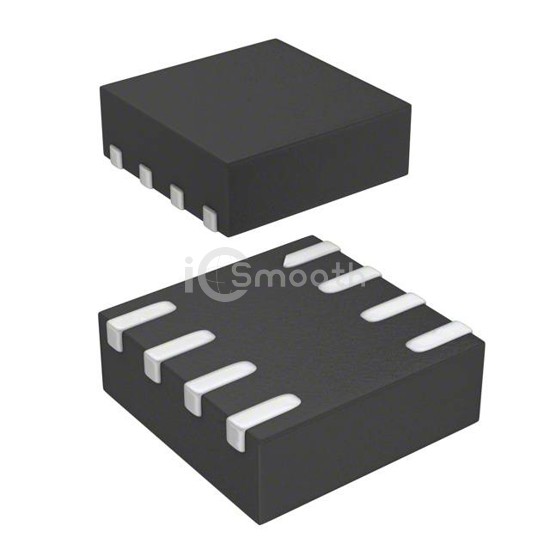

DAC80501MDQFR - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC80501MDQFR Texas Instruments
DAC80501MDQFR

Texas Instruments

SINGLE CHANNEL DAC 16BIT- MIDCOD

DAC80501MDQFR is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. SINGLE CHANNEL DAC 16BIT- MIDCOD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply, digital 2.7V ~ 5.5V, package / case 8-WFDFN.

Datasheet Request a Quote

In Stock: 2,081

Specifications

16 parameters
Product StatusActive
Number of Bits16
Number of D/A Converters1
Settling Time5µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceI²C, SPI
Reference TypeExternal, Internal
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±1 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 125°C
Package / Case8-WFDFN
Supplier Device Package8-WSON (2x2)
Mounting TypeSurface Mount
