DAC7742YB/2K

In Stock: 3,915
DAC7742YB/2K - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC7742YB/2K Texas Instruments
DAC7742YB/2K

Texas Instruments

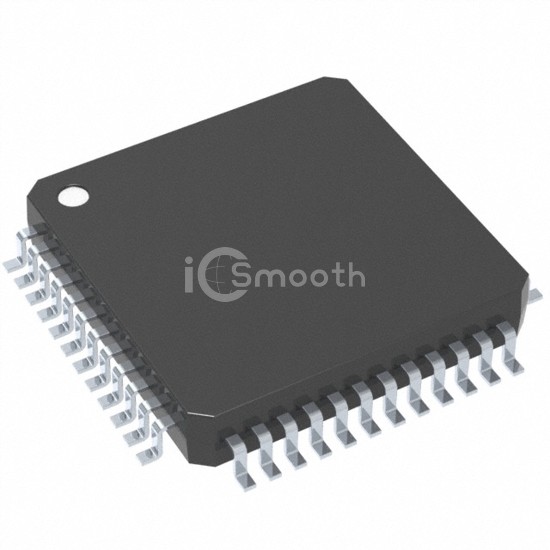

IC DAC 16BIT V-OUT 48LQFP

DAC7742YB/2K is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 16BIT V-OUT 48LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 48-LQFP.

Datasheet Request a Quote

In Stock: 3,915

Specifications

16 parameters
Product StatusObsolete
Number of Bits16
Number of D/A Converters1
Settling Time4µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal, Internal
Voltage - Supply, Analog±11.4V ~ 15.75V, -4.75V ~ -15.75V
Voltage - Supply, Digital5V
INL/DNL (LSB)±4 (Max), ±2 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case48-LQFP
Supplier Device Package48-LQFP (7x7)
Mounting TypeSurface Mount
