DAC7724NB/750

In Stock: 8,162

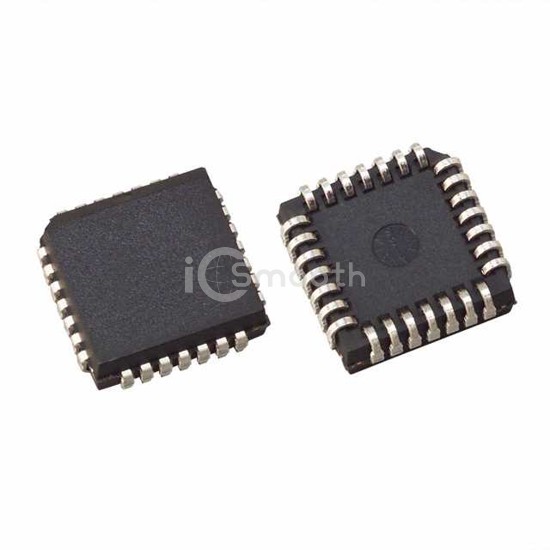

DAC7724NB/750 - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC7724NB/750 Texas Instruments
DAC7724NB/750

Texas Instruments

IC DAC 12BIT V-OUT 28PLCC

DAC7724NB/750 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 12BIT V-OUT 28PLCC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply, digital 5V, package / case 28-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 8,162

Specifications

16 parameters
Product StatusActive
Number of Bits12
Number of D/A Converters4
Settling Time10µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeExternal
Voltage - Supply, Analog±14.25V ~ 15.75V
Voltage - Supply, Digital5V
INL/DNL (LSB)±1 (Max), ±1 (Max)
ArchitectureR-2R
Operating Temperature-40°C ~ 85°C
Package / Case28-LCC (J-Lead)
Supplier Device Package28-PLCC (11.51x11.51)
Mounting TypeSurface Mount
