DAC7513N/3KG4

In Stock: 7,035
DAC7513N/3KG4 - Texas Instruments - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC7513N/3KG4 Texas Instruments

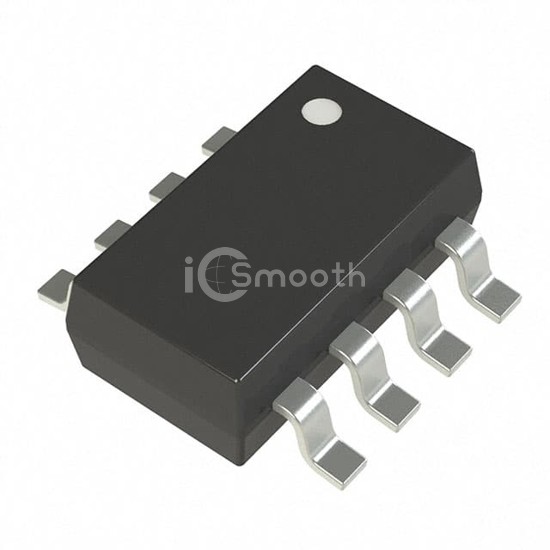

DAC7513N/3KG4

Texas Instruments

IC DAC 12BIT V-OUT SOT23-8

DAC7513N/3KG4 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Texas Instruments. IC DAC 12BIT V-OUT SOT23-8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply, digital 2.7V ~ 5.5V, package / case SOT-23-8.

Datasheet Request a Quote

In Stock: 7,035

Specifications

16 parameters
Product StatusDiscontinued at Digi-Key
Number of Bits12
Number of D/A Converters1
Settling Time10µs
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceSPI, DSP
Reference TypeExternal
Voltage - Supply, Analog2.7V ~ 5.5V
Voltage - Supply, Digital2.7V ~ 5.5V
INL/DNL (LSB)±8 (Max), ±1 (Max)
ArchitectureString DAC
Operating Temperature-40°C ~ 105°C
Package / CaseSOT-23-8
Supplier Device PackageSOT-23-8
Mounting TypeSurface Mount
